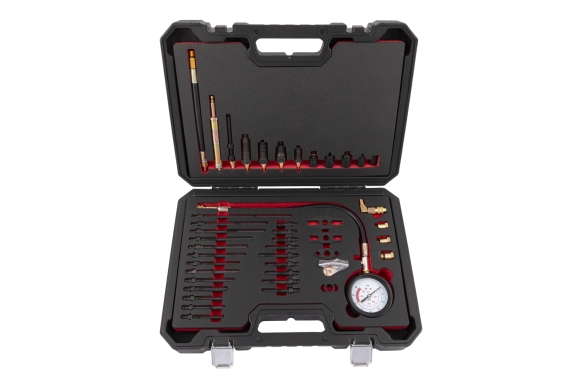

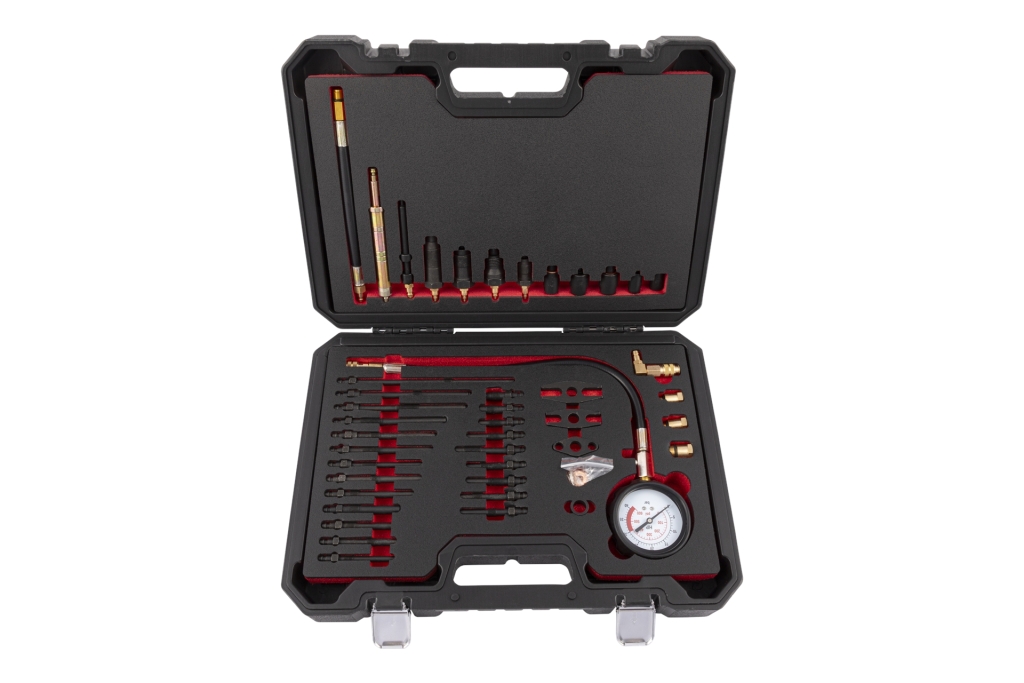

Petrol & Diesel Engines Compression Test Kit

Included clamp-on injector adaptors, 0-40 Bar(600PSI) gauge with rubber
bumper , straight and right angled quick connect fitting and an extensive range
of glow plug and injector adaptors enable this kit to cover the vast majority of
car ,van , truck, and bus ,agricultural and marine diesel engines.
Glow Plug Adaptors: Wide range of Alfa , BMW , Chrysler , Daewoo , Fiat ,
Ford ,Hyundia , Isuzu , Land Rover,LDV,Mazda,Mercedes,Mitsubishi,Nissan,
Opel,PSA,Renault,Saab,Suzuki,Toyota ,VAG , Vauxhall, Volvo diesel engines.
Set contents:
- adapter no. 1 - dimensions: 84.5x9.9x12mm, thread: M12x1.25x10.5mm
- adapter no. 2 - dimensions: 46x9.9x12mm, thread: M12x1.25x10.5mm
- adapter no. 3 - dimensions: 53.7x9.9x12mm, thread: M12x1.25x10mm
- adapter no. 4 - dimensions: 68.5x7.9x12mm, thread: M10x1.25x20mm
- adapter no. 5 - dimensions: 53.6x7.9x12mm, thread: M10x1.25x16mm
- adapter no. 6 - dimensions: 131x7.9x12mm, thread: M10x1.25x25mm
- adapter no. 7 - dimensions: 81x7.9x12mm, thread: M10x1.25x20mm
- adapter no. 8 - dimensions: 69x7.9x12mm, thread: M10x1.25x26mm
- adapter no. 9 - dimensions: 68.4x7.9x12mm, thread: 25x13mm
- adapter no. 10 with sealing ring - dimensions: 163x5x7.9x11.4x12mm, thread: M10x1.0x10mm,
- adapter no. 11 with sealing ring - dimensions: 122.5x5x7.9x11.4x12mm, thread: M10x1.0x10.5mm
- adapter no. 12 - dimensions: 83x7.9x12mm, thread: M10x1.0x9.5mm
- adapter no. 13 - dimensions: 75x7.9x12mm, thread: M10x1.0x12mm
- adapter no. 14 - dimensions: 74.8x7.9x12mm, thread: M10x1.0x10mm
- adapter no. 15 - dimensions: 98x7.9x12mm, thread: M10x1.0mm
- adapter no. 16 - dimensions: 107x7.9x12mm, thread: M10x.1.0mm
- adapter no. 17 - dimensions: 74x7.9x12mm, thread: M10x1.0x9.5mm
- adapter no. 18 - dimensions: 118.7x7.9x12mm, thread: M10x1.25x23.5mm
- adapter no. 19 with sealing ring - dimensions: 158x5x8x11.4x12mm, thread: M10x1.25x26mm
- adapter no. 20 - dimensions: 81.5x6.5x12mm, thread: M8x1.0x11.5mm
- adapter no. 21 with copper washer 20.9x1.5mm - dimensions: total length 41mm, oval size 23.7x19x8mm, handle size 13.7x13mm
- adapter no. 22 - dimensions: total length 38mm, oval size 23.7x19x8.5 mm, handle size 5.6x9.5mm
- adapter no. 23 - dimensions: total length 29.8mm, oval size 17x14x8mm
- adapter no. 24 with copper washer 20.9x1.5mm - dimensions: total length 42mm, oval size 20x17x8mm, handle size 13.7x13.5mm
- adapter no. 25 - dimensions: total length 34.3mm, oval size 17x13.9x8mm, handle size 6.4x7mm
- adapter no. 26 - dimensions: 68x13.4x12x26.7mm, thread: M24x2.0mm
- adapter no. 27 - dimensions: 60x8.5x7.5x20.9mm, thread: M20x1.5mm
- adapter no. 28 - dimensions: 72.2x8.8x6x24.8mm, thread: M24x1.5mm
- adapter no. 29 - dimensions: 85.3x16.4x8.4x22mm, thread: M22x1.5mm
- adapter no. 30 with seal: dimensions - 126.3x5x9.4x16x17mm
- adapter No. 31 - thread M10x1.0mm
- adapter no. 32 - thread M12x1.25mm
- adapter no. 33 - thread: M18x1.5mm
- beam no. 1 - dimensions: 51x25x7.8mm
- beam no. 2 - dimensions: 63.8x25x7.7mm
- beam no. 3 - dimensions: 72.7x30x7.7mm
- cable - length: 265mm
- angle connector
- adapter no. 34 - dimensions: 212x6.6 (diameter of the narrower post) x7.6 (diameter of the wider post) x12mm, thread: M9x1.0mm
- adapter no. 35 - dimensions: 107x6.4x12mm, thread: M8x1.0x17mm
- adapter no. 36 galvanized - dimensions: 174x17x13.8x11.7x8.9mm
- adapter no. 37 galvanized - dimensions: 37.6x17.1x13mm
- adapter no. 38 galvanized - dimensions: 25.7x17.1x13mm
- adapter no. 39 galvanized - dimensions: 19x17.1x13mm
- adapter no. 40 galvanized (3pcs.) - dimensions: 6x17.1x13mm
- adapter no. 41 galvanized - dimensions: 6.6x20x13mm
- 81mm diameter manometer with 35.5cm hose
- washers: 20.9x14.6x1.5mm (5pcs.); 16.8x9.5x1.5mm (5pcs.)
- valves (2pcs.)
