MERCEDES Timing Chain Breaker and Riveting Tool

Applications:
For breaking and riveting Mercedes SIMPLEX and DUPLEX timing chains with 3mm or 4mm pins. The set also includes temporary timing chain links to make work easier.

MERCEDES Engines:
1.7 CDi - 668.94; 668.941; 668.942 (98-05)
2.1 CDi - 646.811; 646.812 (07-14); 646.82; 646.821; 646.951; 646.961 (03-10); 646.962 (00-12); 646.963 (00-12); 646.966 (00-09)
2.2 CDi - 611.96 (98-01); 611.961 (98-03); 611.962 (00-08)
2.7 CDi - 612.961 (98-03); 612.962 (00-08); 612.965 (00-15); 612.967 (02-09); 647.961 (03-10)
3.0 CDi - 642.83 (07-14); 642.832 (07-14); 642.834 (07-14); 642.836; 642.838; 642.85; 642.852 (09-15); 642.853; 642.854; 642.856; 642.858 (11-14); 642.862; 642.868 (05-13); 642.886 (00-15); 642.91 (00-08); 642.92 (05-11); 642.921 (03-10); 642.922 (05-11); 642.93 (05-13); 642.932 (05-13); 642.96; 642.961 (07-14); 642.97; 642.98 (00-15)
3.2 CDi - 613.96 (99-06); 613.961 (98-03); 648.96 (99-06); 648.961 (03-10)
3.9 CDi - 628.96 (99-06); 628.961 (03-10)
4.0 CDi - 628.962 (00-15); 629.91 (03-10); 629.911 (05-13)
CHRYSLER Engines:
2.2D CRD (02-09)
3.0D CRD (05-11)
JEEP Engines:
2.7D CRD (01-11)
3.0D CRD (01-11)

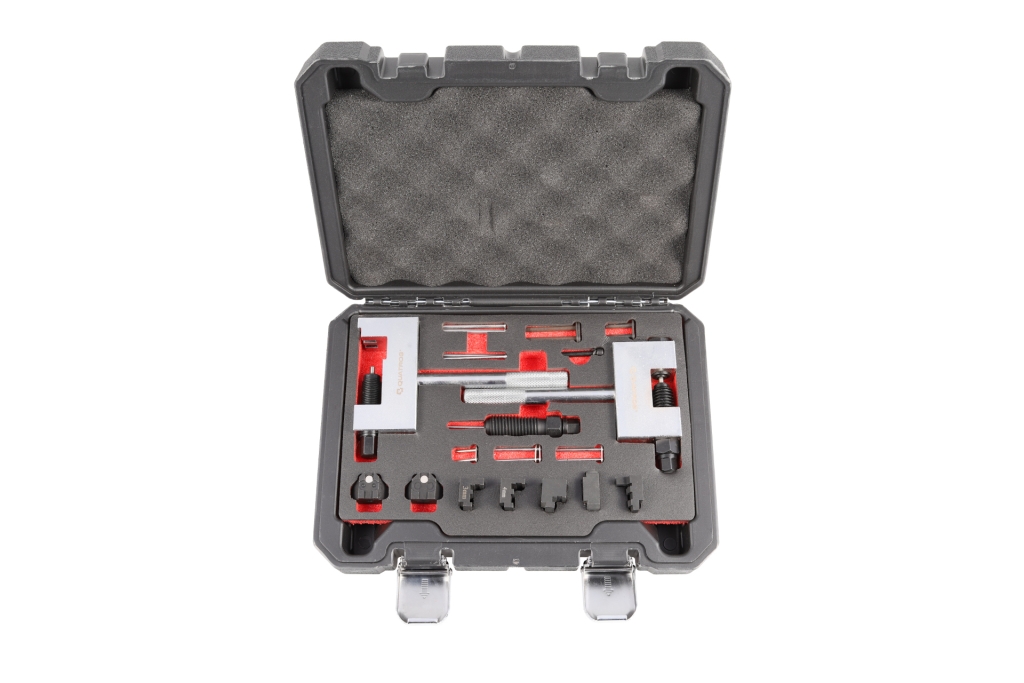

Set contents:
- 3+4mm Chain Separator Tool | OEM No. 602589023300
- 3+4mm Chain Riveter Tool | OEM No. 602589003900
- 4mm Separation and Pilot Bolt | OEM No. 602589056300
- Link Removal Pin (spare parts) | OEM No. 602589046301 x 2
- Temporary Assembly Link | OEM No. 602589026300
- Temporary Threading Link | OEM No. 602589024000
- 3+4 mm Thrust Piece, for assembly | OEM No. 602589026300
- 4mm Thrust Piece, for riveting | OEM No. 602589036300
- 3mm Thrust Piece, for riveting | OEM No. 103589016300
- 4mm Guide Rail, rivets simplex | OEM No. 103589016300
- 3+4 mm Guide Rail, assembly | OEM No. 602589026300
- 4mm Guide Rail, rivets duplex | OEM No. 112589069300
- Swaging Locating Jaw, 3mm Guide Rail, rivets duplex
- Securing Bolt
- Outer Plates
